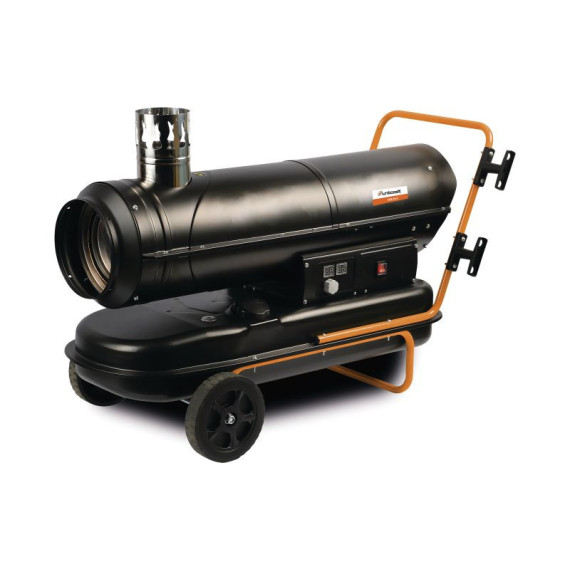

Diesel heater DHG 50 kW with UNICRAFT gas drainage

Diesel heater DHG 50 kW with UNICRAFT gas drainage. The heater has an integrated thermostat with digital screen for automatic temperature control, with a large chassis for comfortable transport. Its ignition is simple with just pressing a button. The exhaust gases are drained separately from the heating air through the fireplace. Therefore, it is possible to heat indoors with clean air by using a heating hose (available in accessories) DHG 50 K with high quality Danfoss pump.

CHARACTERISTICS

Additional features Diesel heater DHG 50 KThe following:

• Fuel indicator tank
• Turning simple with just pressing a button
• Integrated with digital display to keep temperature constant
• Easy handling thanks to automatic electronic ignition
• High quality stainless steel burner
• IPX4 protection
• Integrated fuel tank with fuel level indicator
• Its robust construction ensures a long service life
• High Quality Danfoss Pump
• Ø of the extractor tube 148 mm.

TECHNICAL DATA

Heating power 50 kW

Fan power 2000 m3/h

Heating levels 1

Fuel consumption 3.8 l/h

Deposit capacity 69 l

External diameter of the exhaust pipe 148 mm

Exhaust tube socket 150 mm

VPE 1

Dimensions and weights

Length approx. 1370 mm

Width/depth approx. 560 mm

Height approx. 995 mm

Weight approx. 59 kg

Electrical data

Type of protection IPX4

Electric power 900 W

Connection voltage 230 V

Network frequency 50 Hz

Noise emission

Acoustic pressure level 79 dB(A)

EQUIPMENT

Type of fuel pump Gear pump

Termostato de ambiente ✔

Off the fan when temperature is reached After 90 s

Connection cable ✔

Connection plug EEC 7/4

VIDEO

FOR WHAT WORKING TIME IS ADOPTED

The diesel heater is mainly used in working spaces that require heating in conditions where central or electrical heating is not available. Some of the spaces where you can use include:

• Construction: Heat works in cold climates, allowing workers to perform their work in a more comfortable environment.
• Stores: Keep the temperature adequate in storage areas, especially for products sensitive to low temperatures.
• Workshops: Provide heat in workplaces where repairs or fabrications are made.
• Outdoor Events: Heat tents or outdoor areas at events such as fairs, weddings and concerts.
• Agriculture: Used in greenhouses or to protect sensitive crops during the winter.

This type of heater is valued for its portability and ability to heat large areas efficiently.

CERTIFICATION

Stürmer Group Quality Management System certified according to ISO 9001:2015

ISO 9001 is a globally recognized quality management standard. It helps organizations of all sizes and sectors to improve their performance, meet customer expectations and demonstrate their commitment to quality.

Its evaluation base includes:

Guidance towards customer requirements

Compliance with standards and guidelines

Knowledge management

Clearly defined process flows

Corporate responsibility

Sustainability, development and innovation

Risk management

ON UNICRAFT

Aircraft Stuermer Machines produces machines of compressed air technologies, metal work and cleaning technology, with large applications in the industry. The company was founded in 1982 by Stürmer Maschinen and Kilian Stürmer as a wholesaler of machinery with agencies and is now one of the leading suppliers of German machine retailers.
