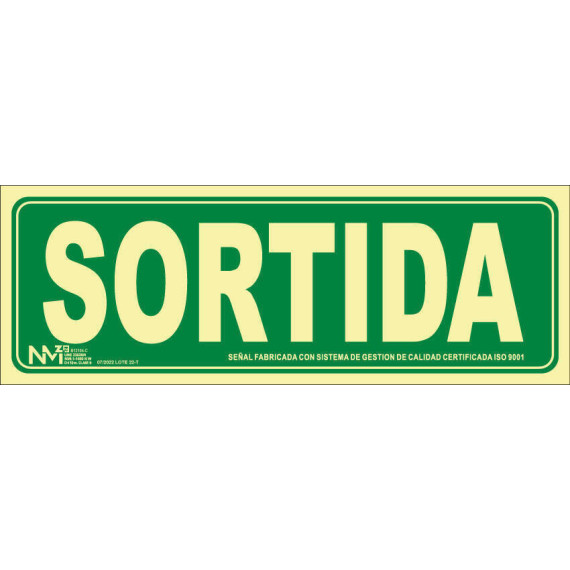

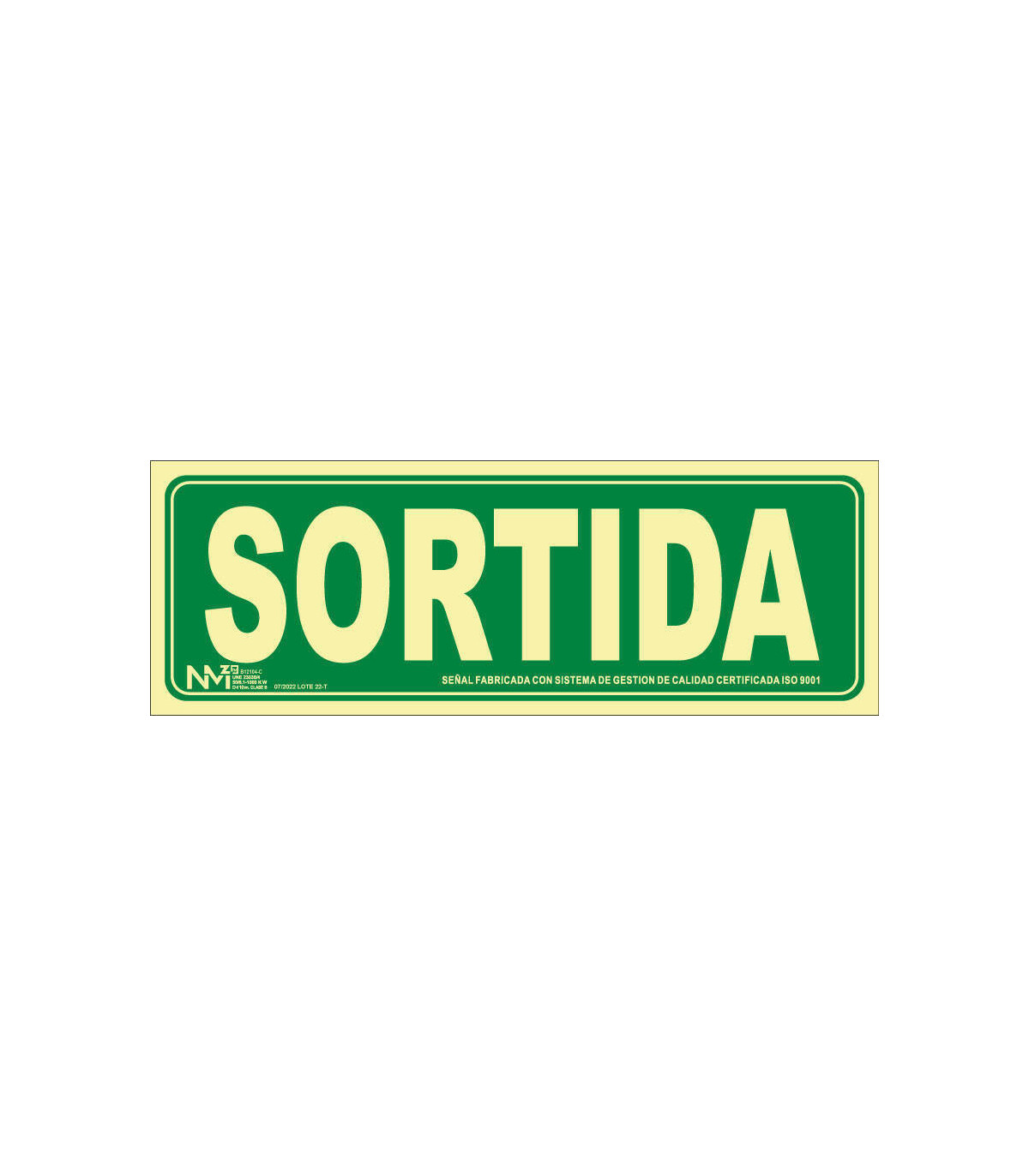

Signal in Catalan "Sortida"

Signal in Catalan "Sortida"

PRODUCT IDENTIFICATION

According to UNE 23035/4:

• Manufacturer's name or mark
• Date of manufacture
• Designation (Class A or Class B as appropriate)

According to RIPCI 513/2017:

• Lot number

MINIMUM LUMINESCENCE VALUES AFTER THE SALT CHAMBER

All NMZ signalling shall be subjected to different internal and external light response tests ensuring compliance with the light intensity values referred to in UNE 23035.

CLASE A:

CLASE B:

CHARACTERISTICS

MATERIALS SOPORT PVC

According to UNE 53127:

• White PVC 1 mm for class A and transparent PVC 0,7 mm and 0,5 mm for class B
• White lacquered aluminum 0.6 mm thick.
• Stability with Ta < 55o.
• Absorption of negligible water (0,04 ± 0,01) %.
• Not fuel.
• Not containing appreciable amounts of lead and phosphorus (less than 0,01%)
• It's not toxic.

PICTOGRAMME

According to regulations:

• UNE EN ISO 7010
• UNE 23033/1

TEXTS

• According to UNE 23033/1

PRODUCTO FOTOLUMINISCENTE

• Composed of pigments.
• Unlimited photoluminescent charge and discharge cycles

COLOR

Tones by standard:

• UNE EN ISO 7010
• UNE 23033/1
• High adhesion and strength ink.
• It allows great flexibility in the final product.
• It's not self-igniting. Not toxic

FINAL SPACE

Class A

• PVC 1,2 m/m (± 10%).
• ALUMINIO 0.8 m/m (±10%).

Class B

• PVC 0,8 m/m (± 10%) or more.
• Technology" according to the General Technology Note for the "development", "production" or "use" of equipment or "software" specified in 5A001.

REFERENCE

• Printed on the signal

DIMENSIONS

• According to UNE 23033/1

OF COLOR

• According to UNE 23033-1

MXIMA OF VISION

• Printed on the signal.

To calculate the necessary dimensions of a signal up to a maximum distance of 50 m, the formula shall be applied:

S≥ L2 / 2000

“S” represents the surface of the signal in square meters, and L” the distance in meters from which the signal can be perceived.

ACTION

CLASE A

• A11404-C.........320X160 (PVC Luminiscente 1mm)
• .......640X320 (PVC Luminiscente 1mm)
• .......960X480 (PVC Luminiscente 1mm)
• FA11904-C.........320X160 (Aluminium Luminiscente 0.5mm)
• FA18904-C.........640X320 (Aluminium Luminiscente 0.5mm)
• FA1K904-C............960X480 (Aluminium Luminiscente 0.5mm)

CLASE B

• B11104-C.........320X160 (PVC Luminiscente 0.7mm)
• FB18004-C.........640X320 (PVC Luminiscente 0.7mm)
• FB1K004-C.........960X480 (PVC Luminiscente 0.7mm)

NORMATIA

- UNE 23033/1:2019 (extinction) - fire safety. Signalling

- UNE 23033/2:2019 (Installations) - Security against fire. This is a security signal. Part 2: Signing and identification of fire protection installations.

- UNE 23034/1998 (evacuation) - fire safety. This is a security signal. Evacuation routes.

- UNE 23035-1/2003 - Safety against fire. Light-emitting signalling-

- UNE 23035-4/2003 - NMZ signals regularly pass radioactivity tests to ensure that the signalling element does not emit in accordance with the UNE standard. 23035 to 4.

- UNE 53127/2002 - Cellular plastics and related products. Determination of the combustion characteristics of test pieces in a horizontal position subjected to a small flame.

- One in ISO 7010:2012 - Graphical symbols and other graphic symbols. Colors and safety signs. Registered safety signals (ISO 7010:2011) (Ratified by AENOR in September 2012)

- RD 314/2006 (CTE - Technical building code)

- RIPCI 2017 (extinction) - Regulation of fire protection facilities.

- NMZ signals are manufactured with UNE-EN ISO 9001 certified quality management system

AND CONSERVATION

The working temperature shall not exceed 45 °C. Higher temperatures may deform the support material.

The optimum storage temperature shall be between 15oC and 25oC and a humidity of 10/50%.

Cleaning methods; avoid applying abrasive products. It is recommended to clean them with water and neutral detergents.

The technical building code – Basic fire safety document requires that photoluminescent signalling comply with UNE 23035.

In order to preserve the functionality for which the signalling systems have been designed, SEKURECO recommends that signals be kept free from dust, dirt or any residue or object that prevents their visibility and identification.

For its cleaning, it is advisable to use soap solutions preferably, avoiding the use of solvents or abrasive products that may deteriorate the surface of the signal.

Photoluminescent signals shall be so placed that they receive energy from a natural or artificial light source to ensure their correct operation.

In accordance with RD 513/2017 (TABLA III), luminous signalling systems shall be subject to an annual inspection/revision to be carried out by specialised personnel of the manufacturer, a maintenance company or the user or owner of the installation.

At the end of the service life of the signals comprising the signalling system, the inspection of these elements shall be carried out in accordance with the instructions set out in RD 513/2017 and UNE 23035-2

SECOND INSTALMENT

Check our blog to learn how to install a sign or sign: https://www.sekureco.eu/blog/76_consejos-de-instalacion-de-senales-de-seguridad.html

The recommended installation height is between 2 and 2.50 metres, always maintaining a separation distance of 0.30 metres from the ceiling.

Photoluminescent signals shall be so placed that they receive energy from a natural or artificial light source to ensure their correct operation.

FIXING of the signalling element shall be carried out on a firm surface free from dirt.

The signal may be secured by means of MECHANICAL ELEMENTS (screwdrivers, rivets, etc.) or ADHESIVES (mounting adhesive, tails, silicones, etc.) carefully, avoiding dirtying the visible surface or deforming it.

EVACUATION signalling must be installed in such a way that an evacuation can be initiated from any point likely to be occupied in the enclosure.

The signage in DOORS shall be placed on the lintel of the door with the appropriate label (“EXIT”, ).EMERGENCY EXIT”, SIN EXIT”, ...).

Means of protection against fire, rescue and/or salvage shall be marked on the same elements to be marked whenever possible.
