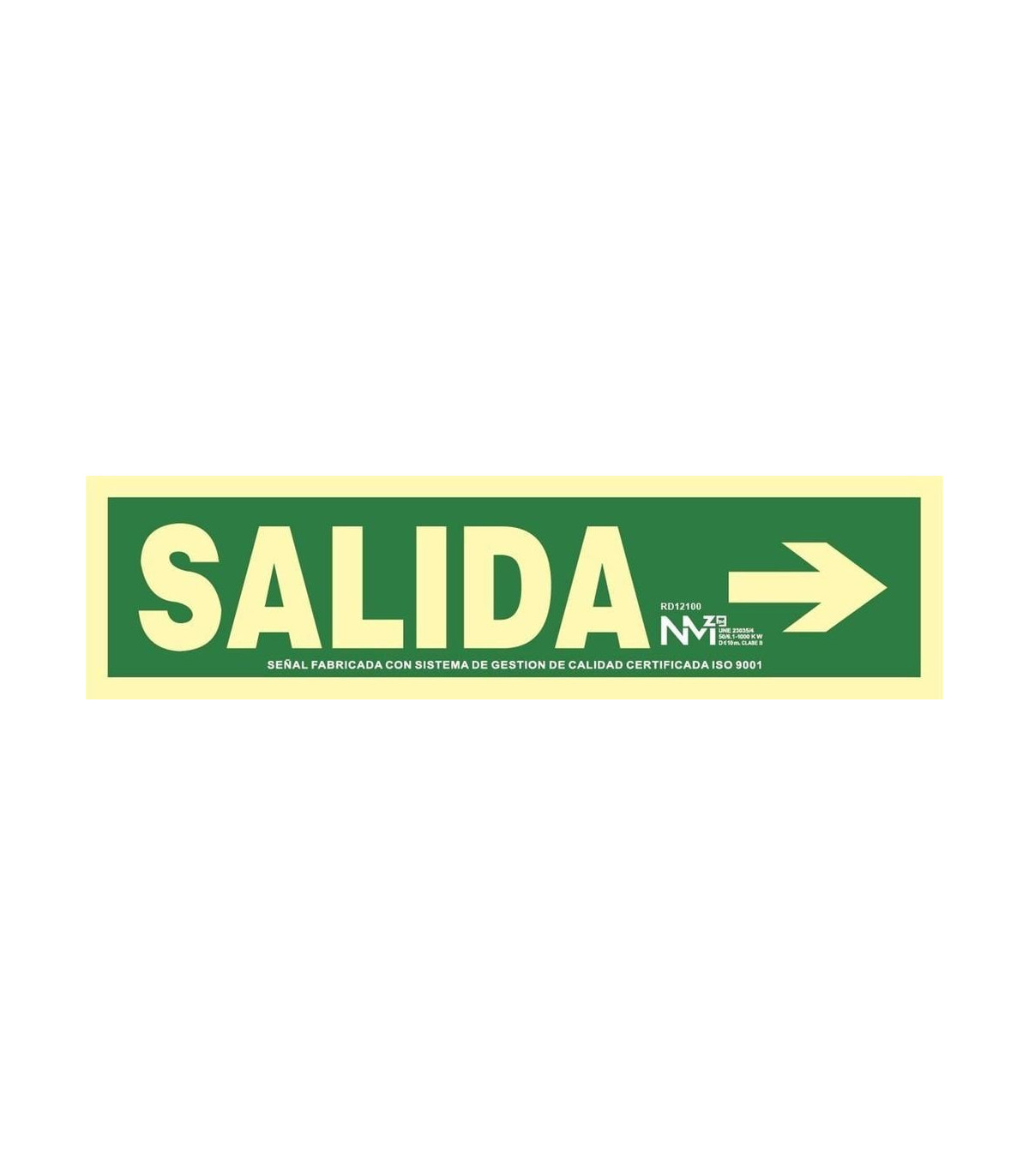

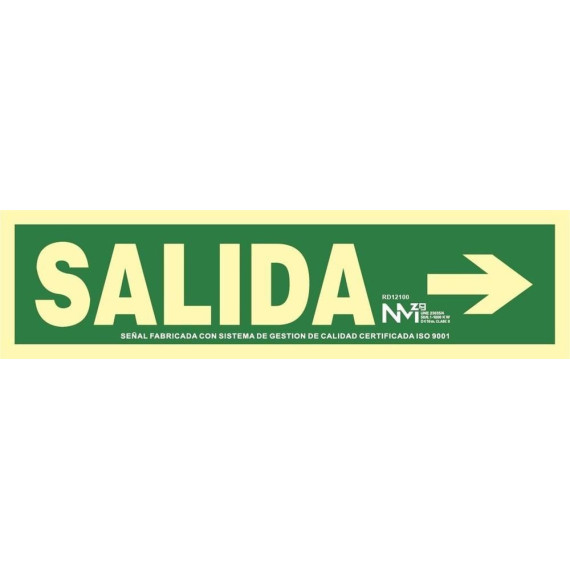

Exit Sign Arrow (right) with luminescent layer 105 x 402 mm SEKURECO

Exit signal Arrow (right) with luminescent coating 105 x 402 it's safe. Emergency and evacuation exit signal with right-hand arrow drawn on PVC sheet 0.7mm with a photoluminescent pigment layer, (after absorbing light, the product emits it in the dark, so it does not need any electrical source and the product can be charged an indefinite number of times).

The sign is used to signal doors and spaces intended for emergency exit in buildings and enclosed spaces. Suitable for industrial use.

An evacuation signal with the word "EXIT" is used to indicate the location of emergency exits in a building. These signs are essential for guiding people to the exit in case of an emergency situation, such as a fire, earthquake or other dangerous situation.

The evacuation sign with the word "EXIT" is usually designed in large, clear letters, and is often placed in strategic places, such as near exit doors or in hallways and corridors. This allows people to quickly identify the direction to which they need to go to get out of the building safely.

In addition, these signals may also include arrows or direction indicators to indicate the exact route to the nearest exit. This helps people make quick and efficient decisions during an evacuation, especially in situations of panic or confusion.

In short, evacuation signs with the word "EXIT" are essential for people's safety in an emergency. They provide clear and visible guidance on the location of exits and help people evacuate the building quickly and safely.

IDENTIFICATION OF THE PRODUCT

According to UNE 23035/4:

• Manufacturer's name or mark
• Date of manufacture
• Designation (Class A or Class B as appropriate)

According to RIPCI 513:

• Manufacturer's name or mark

MINIMUM LUMINESCENCE VALUES AFTER SALINE

CLASS A:

CLASS B:

CHARACTERISTICS

PVC SUPPORT MATERIALS

According to UNE 53127:

• White PVC 1 mm for class A and transparent PVC 0,7 mm for class B
• White lacquered aluminum 0.6 mm thick.
• Stability with Ta < 55o.
• Absorption of negligible water (0,04 ± 0,01) %.
• It's self-extinguishing.
• Not containing appreciable amounts of lead and phosphorus (less than 0,01%)
• It's not toxic.

OTHER

According to regulations:

• UNIFIED IN ISO 7010
• OTHER

TEXTS

• According to UNE 23033/1

PHOTOLUMINESCENT PRODUCT

• Composed of pigments.
• Unlimited photoluminescent charge and discharge cycles

COLOUR

Tones by standard:

• UNIFIED IN ISO 7010
• OTHER
• High adhesion and strength ink.
• It allows great flexibility in the final product.
• It's not self-igniting. Not toxic

FINAL THICKNESS

Class A

• PVC 1,2 m/m (± 10%).
• Aluminium 0,8 m/m (± 10%) or more.

Class B

• PVC 0,8 m/m (± 10%) or more.
• Technology" according to the General Technology Note for the "development", "production" or "use" of equipment or "software" specified in 5A001.

REFERENCE

• Printed on the signal

DIMENSIONS

• According to UNE 23033/1

PERCENTAGE OF COLOUR

• According to UNE 23033-1

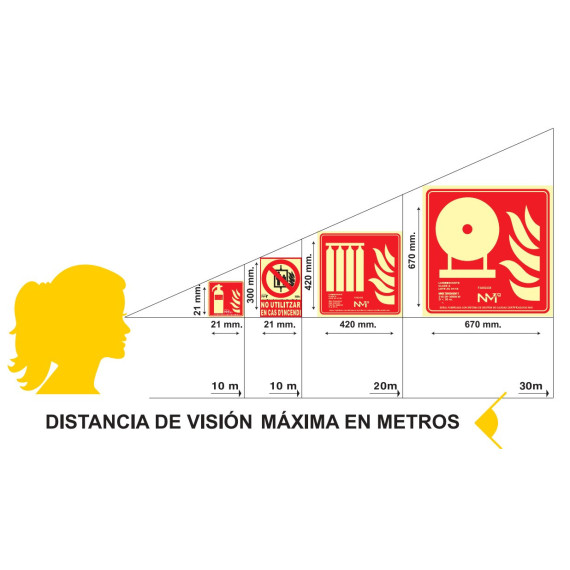

MAXIMUM DISTANCE OF VISION

• Printed on the signal.

To calculate the necessary dimensions of a signal up to a maximum distance of 50 m, the formula shall be applied:

S≥ L2 /2000

S” represents the surface of the signal in metres squared, and L” the distance in metres from which the signal can be perceived.

MEASURES

The manufacturer shall provide the technical documentation referred to in paragraph 1 of this Article

• RD12100.105x402

REGULATORY

- UNE 23033/1:2019 (extinct)

- UNE 23033/2:2019 (Installations)

- UNE 23034/1998 (Evacuation of workers)

- OF WHICH:

- SECTION 23035 TO 4/2003

- SECTION 53127/2002

- UNITED IN ISO 7010: 2012

- DECISION NO 314/2006 (CT)

- RIPCI 2017 (extinct)

STORAGE, CLEANING AND PRESERVATION

The working temperature shall not exceed 45 °C. Higher temperatures may deform the support material.

The optimum storage temperature shall be between 15oC and 25oC and a humidity of 10/50%.

Cleaning methods; avoid applying abrasive products. It is recommended to clean them with water and neutral detergents.
