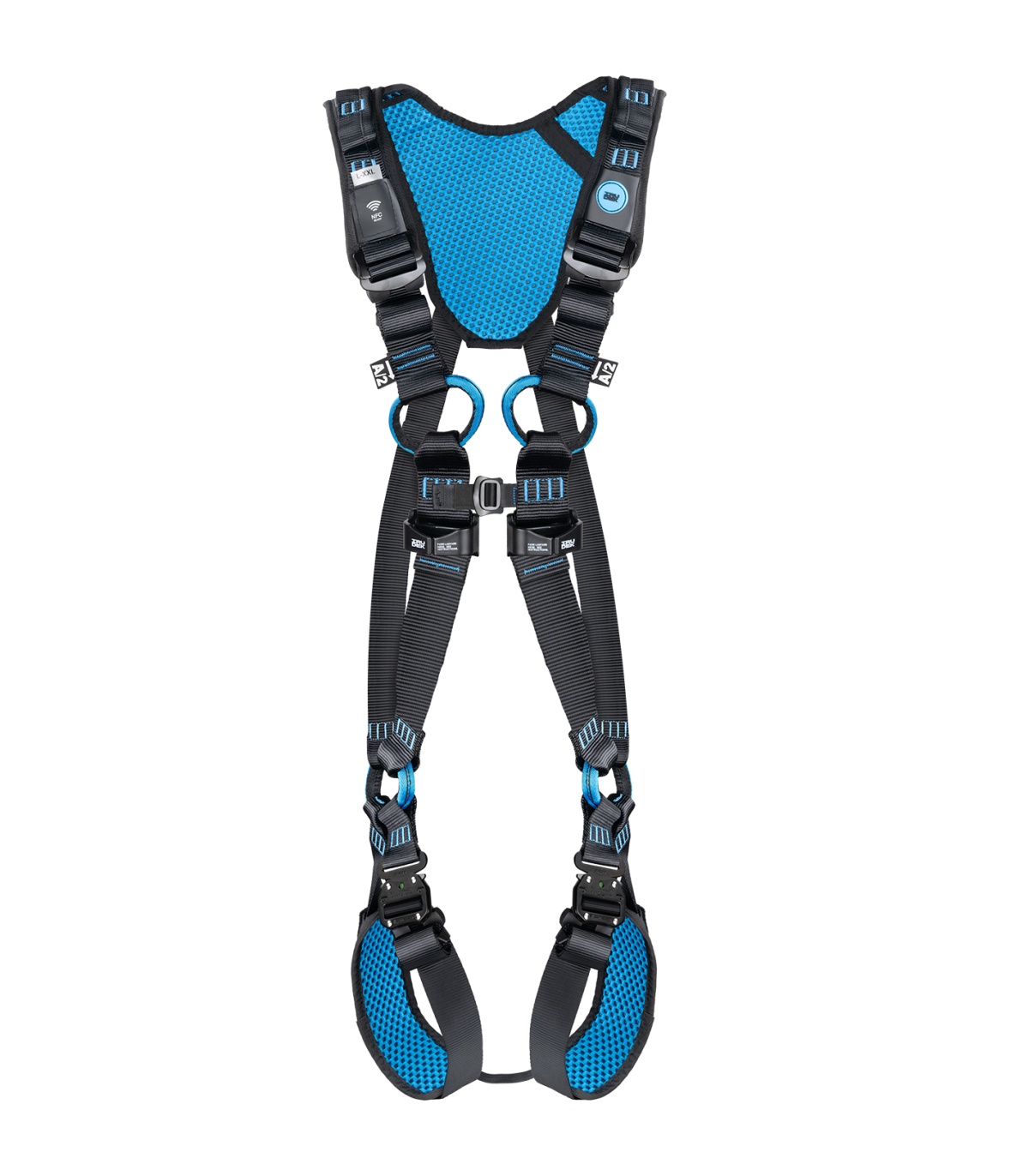

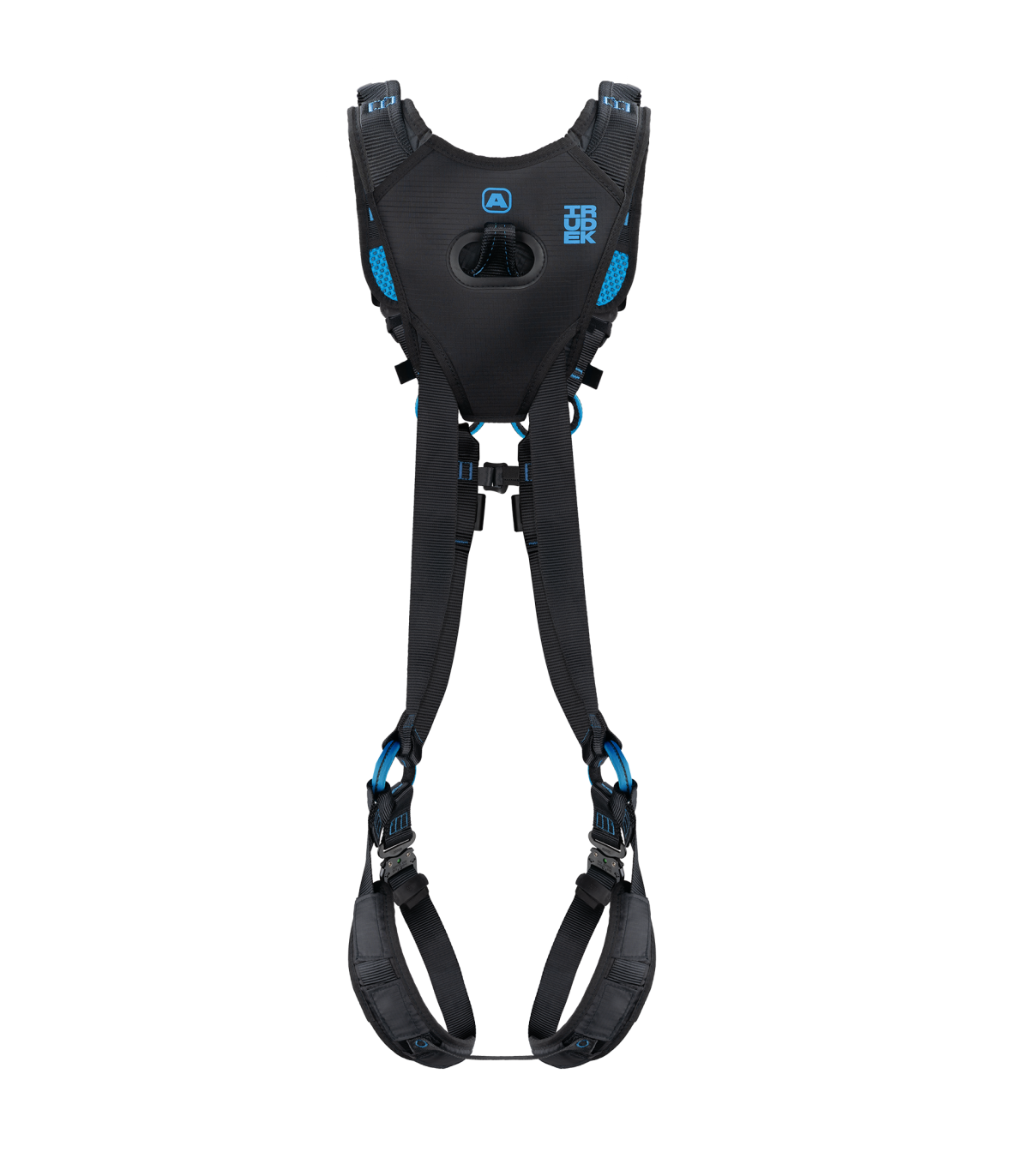

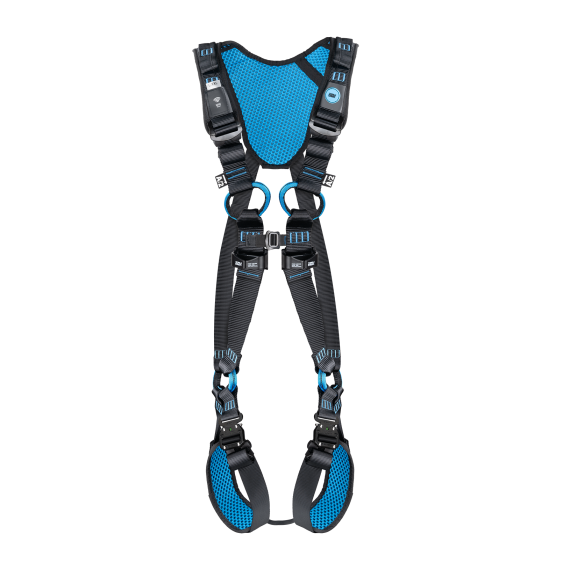

Harness with anchor point and adjustable straps IRUDEK Wind Blue 1

Harness with 1 dorsal anchorage point + 1 sternal anchorage point. Adjustable shoulder, thigh and chest straps. The leg buckles are automatic and provide easy adjustment. Metal rings to place the end connectors free from the forked strings. It has a woven mesh specially padded in polyester that offers better energy absorption and provides maximum comfort to the user. Forged aluminum rings. It comes with a nylon bag.

Manufacture from materials of any heading, except that of the product

Manufacture in which all the materials used are classified within a heading other than that of the product

CHARACTERISTICS

• Back and front slip ring
• 3 automatic K-Easy buckles
• Adjustable in height and legs
• Protected identification label with textile protector
• Antislip tape collection system included
• Includes Irusak 10L

TECHNICAL DATA

• Weight: 1620 gr
• For the purpose of this Regulation, the following definitions shall apply:
• Tape width: 44 mm
• Antislip system: yes
• Automatic buckles: K- Easy
• Capacity: 140 kg
• Polished: Irupad with Hotelech technology
• Size: S-M. L-XXL
• Shelf life: 10 years of use + 1 storage

PACKAGING DATA

• Weight: 1620 gr
• Unit/box: 5
• Packing length: 45 cm
• Packaging width: 34 cm
• Height of packaging: 14 cm

MATERIALS

• Woven fabrics containing predominantly, but < 85% polyester staple fibres by weight
• Manually adjusting buckles: steel
• Tape: polyester
• Other plates, sheets and strip

SIZE GUIDE

*Measurements in centimetres

* Approximate measures

STANDARDS AND REGULATIONS

Meets the requirements of the Personal Protective Equipment (PPE) Directive

- IN 361

APPLICATIONS

Ideal for rope access work

For work at height: can be used with anti-fall equipment

Suspension and positioning

RESTRICTIONS ON USE

The equipment must be attributed individually to one person.

- It is recommended that the anchorage point where the anti-fall system will be fixed be above the user. The anchorage point shall have a minimum static resistance of 12 kN (metal) or 18 kN (textile) and shall comply with the requirements of EN 795:1996 / EN 795:2012.

- Personal protective equipment should not be worn by persons whose state of health could affect the safety of the user under normal conditions of use or in an emergency.

- Personal protective equipment should only be used by a person trained and competent in its safe use.

ATTENTION

- A fall harness is the only acceptable body restraint that can be used in a fall harness.

- The fallprotection system must be connected only to the harness connection points marked with the capital letter “A”. The identification A/2 indicates that it is necessary to connect two connection points with the same identification. It is forbidden to connect the protective system to a single connection point identified as A/2”.

- In harnesses with a built-in belt, the positioning equipment must be connected only to the belt's lateral anchorage rings.

- Connection to the anchorage point and to other equipment must be made via muskets in accordance with EN362:2004.

- For use with EN 353-1:2014+A1:2017,EN 353-2:2002 it is recommended to connect the equipment to the front anchorage of the harness. For use with EN 355 energy absorbers or EN 360 anti-roll, it is recommended to connect the equipment to the harness dorsal anchorage point. - Before each use of personal protective equipment, it must be checked carefully to ensure that it is in working order and functioning properly.

- During the pre-use check it is necessary to carefully inspect all equipment elements to verify that they show no signs of deterioration, excessive wear, corrosion, abrasion, degradation by UV radiation, cutting or incorrect use. Pay particular attention to tapes, seams, anchor rings, buckles and deregulation elements.

ABOUT IRUDEK

Irudek Group is an expanding group of companies with headquarters in Spain, operations in Italy, Brazil and India and sells its products in more than 50 countries. Irudek Group is safety and guarantee, backed by years of experience and by customers who have placed their trust in its products.
