Extinction signal Alarm button (without text) luminescent SEKURECO

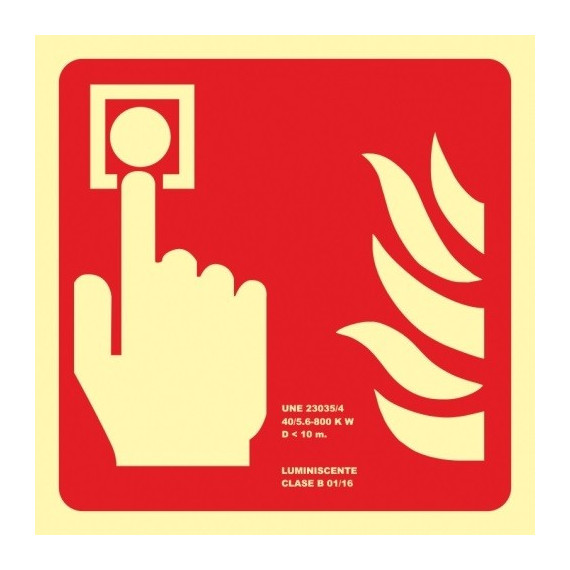

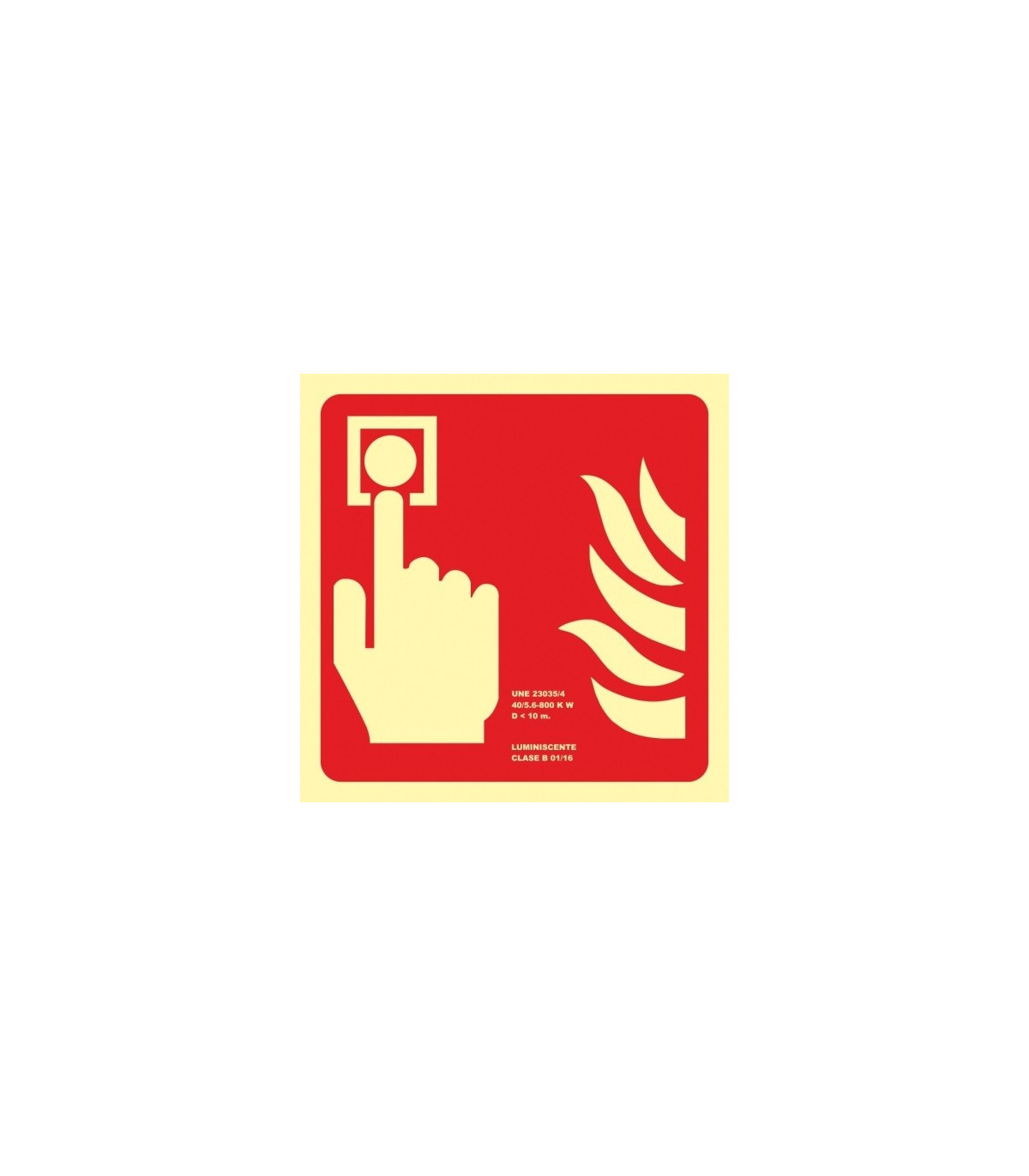

SEKURECO PVC luminescent alarm button sign (without text). It is a sign of high quality and easy installation. This signal is used to indicate the existence of a device to be activated in the event of fire by pressing a button. When activated, the device immediately informs the fire detection center

Made on a PVC or aluminum sheet with a layer of photoluminescent pigment, (after absorbing light, the product emits it in the dark, so it does not need any electrical source and the product can be charged an indefinite number of times).

See: SEKURECO PVC luminescent alarm push button sign

Material:

CLASS B (PVC 0.7 mm)

CLASS A (PVC 1 mm)

PVC Glasspack 0.4 mm

Dimensions:

210x210mm

420x420mm

670 x 670mm

PRODUCT IDENTIFICATION

According to UNE 23035/4 standard:

• Name or brand of the manufacturer
• Manufacturing date
• Designation (class A or class B as appropriate)

According to RIPCI 513:

• Name or brand of the manufacturer

MINIMUM LUMINESCENCE VALUES AFTER SALT CHAMBER

All NMZ signage is subjected to different internal and external light response tests that guarantee compliance with the light intensity values contemplated in the UNE 23035 standard.

A CLASS:

CLASS B:

CHARACTERISTICS

PVC SUPPORT MATERIALS

According to UNE 53127 standard:

• White PVC 1mm for class A and transparent PVC 0.7mm for class B
• White lacquered aluminum, 0.6mm thick.
• Stability with Tª < 55º.
• Negligible water absorption (0.04 ± 0.01)%.
• Self-extinguishing.
• No appreciable lead and phosphorus content (less than 0.01%)
• Not toxic.

PICTOGRAMS

According to standards:

• JOINS EN ISO 7010
• UNE 23033/1

TEXTS

• According to UNE 23033/1 standard

PHOTOLUMINESCENT PRODUCT

• Pigment-based compound.
• Unlimited photo-luminescent charge and discharge cycles

COLOR

Tones according to standard:

• JOINS EN ISO 7010
• UNE 23033/1
• Ink with great adhesion and resistance.
• It allows great flexibility in the final product.
• Not self-flaming. Not toxic

FINAL THICKNESS

A class

• PVC 1.2 m/m (±10%).
• ALUMINUM 0.8 m/m (±10%)

Class B

• PVC 0.8 m/m (±10%).
• ALUMINUM 0.7 m/m (±10%).

REFERENCE

• Printed on the sign

DIMENSIONS

• According to UNE 23033/1 standard

COLOR PERCENTAGES

• According to UNE 23033-1 standard

MAXIMUM VIEWING DISTANCE

• Printed on the sign.

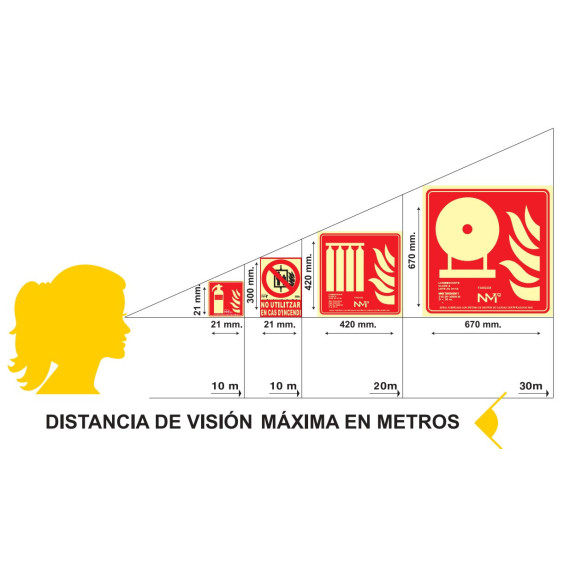

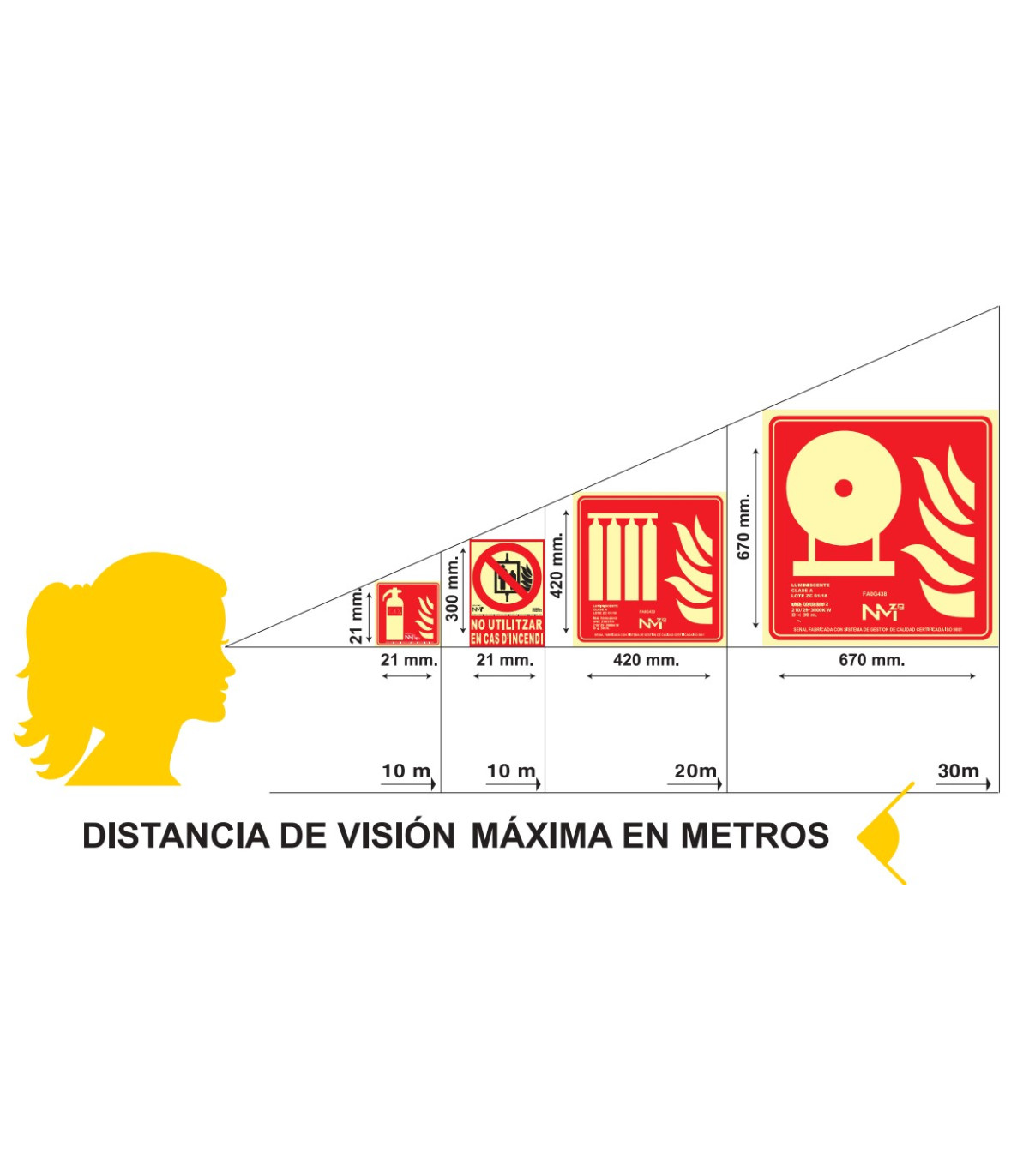

To calculate the necessary dimensions of a sign, the formula will be applied, up to a maximum distance of 50 m:

S≥ L2 /2000

“S” represents the area of the signal in square meters, and “L” the distance in meters from which the signal can be perceived.

MEASURES

CLASS B (PVC 0.7 mm)

• 210x 210, 460x 460, 670x 670

PVC Glasspack 0.4 mm

• 210x 210, 460x 460, 670x 670

CLASS A (PVC 1 mm)

• 210x 210, 460x 460, 670x 670

NORMATIVE

- UNE 23033/1:2019 (Extinction) - Fire safety. Signaling

- UNE 23033/2:2019 (Facilities) - Fire safety. Safety signage. Part 2: Signage and identification of fire protection facilities.

- UNE 23034/1998 (Evacuation) - Fire safety. Safety Signage. Escape routes.

- UNE 23035-1/2003 - Fire safety. Photoluminescent signage-

- UNE 23035-4/2003 - NMZ signs periodically pass radioactivity tests that guarantee the non-emission of the signaling element in compliance with the UNE standard. 23035-4.

- UNE 53127/2002 - Cellular plastics. Determination of the combustion characteristics of specimens in a horizontal position subjected to a small flame.

- UNE EN ISO 7010: 2012 - Graphic symbols. Colors and safety signs. Registered safety signs (ISO 7010:2011) (Ratified by AENOR in September 2012.)

- RD 314/2006 (CTE - Technical Building Code)

- RIPCI 2017 (Extinction) - Fire Protection Installations Regulations.

- NMZ signs are manufactured with a UNE-EN ISO 9001 certified quality management system

STORAGE, CLEANING AND CONSERVATION

The working temperature should not be higher than 45º C. Higher temperatures can deform the support material.

The optimal storage temperature will be between 15º C and 25º C; and with a humidity of 10/50%.

Cleaning methods; avoid applying abrasive products. It is recommended to clean them with water and neutral detergents.

The technical building code – Basic fire safety document requires that photoluminescent signage must comply with the UNE 23035 standard.

In order to preserve the functionality for which the signage systems have been designed, SEKURECO recommends keeping the signs free of dust, dirt or any debris or object that prevents their visibility and identification.

For cleaning, it is advisable to preferably use soapy solutions, avoiding the use of solvents or abrasive products that could damage the surface of the sign

Photoluminescent signs must be located in such a way that they receive energy from a natural or artificial light source to ensure their correct operation.

In accordance with RD 513/2017 (TABLE III), luminescent signaling systems must undergo an annual inspection/review that will be carried out by specialized personnel from the manufacturer, a maintenance company, or by the user personnel or owner of installation.

Once the useful life of the signals that make up the signaling system has expired, the inspection of said elements will be carried out following the instructions contained in RD 513/2017 and UNE 23035-2

SIGNAL INSTALLATION

Check out our blog to learn how to install a sign or poster:https://www.sekureco.eu/blog/76_consejos-de-instalacion-de-senales-de-seguridad.html

The recommended INSTALLATION HEIGHT ranges between 2 and 2.50 meters, always maintaining a separation distance of 0.30 meters from the ceiling.

Photoluminescent signs must be located so that they receive energy from a natural or artificial light source to ensure their correct operation.

The FIXING of the signaling element must be carried out on a firm surface free of dirt.

The sign may be secured using MECHANICAL ELEMENTS (screws, rivets, etc...) or ADHESIVES (assembly adhesive, glues, silicones...) carefully, avoiding soiling the visible surface or deforming it.

EVACUATION signage must be installed in such a way that an evacuation can be initiated from any point of occupation in the premises, so it is recommended to install directional signs on all routes, intersections, stairs, etc. that serve as a route.

The DOOR signage will be placed on the door lintel with the appropriate label (“EXIT”, “EMERGENCY EXIT”, NO EXIT”, …).

The signaling of MEANS OF PROTECTION against fire, rescue and/or aid will be carried out on the same elements to be signaled whenever possible.
