€0.76 (no TAX)
Sign indicating It is Mandatory to Remove The Tips (pictogram and text) SEKURECO
Sign indicating It is mandatory to remove the dots (pictogram and text).
In addition, the applicant shall provide the Commission with all the information necessary to demonstrate compliance with this criterion.
IN ISO 7010:2012
€0.76 (no TAX)

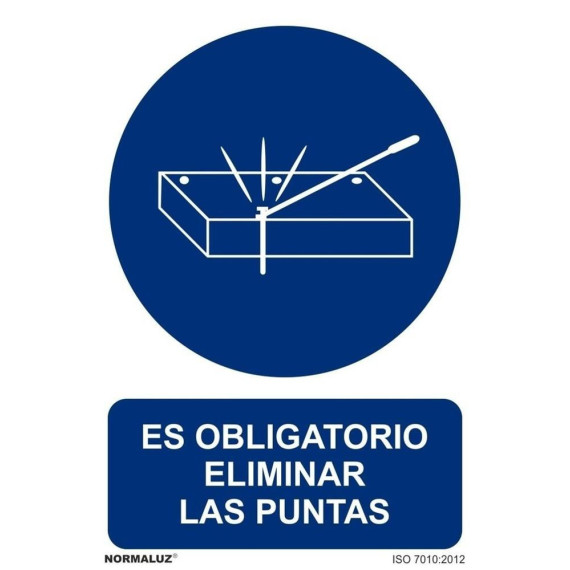

Obligation sign for industries with text and pictogram, the sign indicates "It is Mandatory to Eliminate The Tips" as a safety measure in industries. This obligation sign it is available in aluminum, PVC and aluminum adhesive formats and comes in 5 different sizes, the predominant shape is rectangular and can be installed both indoors and outdoors
The sign refers to the obligation to remove sharp or pointed ends from certain objects or tools. The sign, consequently, indicates that it is mandatory to eliminate these extremes to avoid possible accidents or injuries in the workplace. Meanwhile, the text is accompanied by a pictogram that represents the elimination of the tips.
Signs of obligation Sekureco they are made with UV inks with excellent adhesion and a matte finish. This sign is usually used in spaces and establishments with special security such as the electrical industry and factories. Generally, these obligation signs are located in visible spaces that are easy for users to appreciate
Among the most common technical characteristics of obligation signs with SEKURECO UV inks are:
- Shape:It is usually a circle with a blue border and a white pictogram representing wire tips
- Size:May vary depending on the size and location of the work area.
- Colors:Safety signs use specific colors to communicate their message. The color blue is commonly used to indicate that the use of personal protective equipment is mandatory.
- Material:Safety signs can be made of different materials, such as plastic, aluminum, or vinyl sticker. The material used will depend on the location and environment in which the sign will be placed. For example, if the sign is placed in an area where there is a lot of dust or humidity, it is advisable to use a material resistant to these conditions.
GLASSPACK PVC SIGN: DESCRIPTION
The signs ofGLASSPACKOf0.7mmThey consist of a semi-rigid polymer base (PVC) with a glossy white finish on which the color and protection coating is applied using screen printing techniques.
Our products areNON-TOXIC, NON-RADIOACTIVE, NON-COMBUSTIBLE and RESISTANT TO AGING.
- MEDIUM:0.7 mm GLASSPACK SHEET (semi-rigid PVC) in glossy white color.
- COLOR LAYER:Of screen printing inks cured by means of UV radiation for multipurpose use. COLOR BLACK, GREEN, RED, BLUE, YELLOW, ORANGE depending on the type of signalGLOSSY FINISH, SIGNAL PROTECTION AGAINST UV RAYS.
ADHESIVE PVC SIGN (STICKER)
Signs are manufactured on a sheet of self-adhesive gloss white monomeric calendered vinyl
The color coating is applied to it using silk-screen techniques.
The adhesive is protected against the elements by a transparent gloss calendered laminate.
Our products areNON-TOXIC, NON-RADIOACTIVE, NON-COMBUSTIBLE and RESISTANT TO AGING.
Description:
- TRANSPARENT LAMINATE GLOSSY FINISH0.8 mm. Transparent CALANDRED PVC film with MONOMERIC PLASTICIZER, cadmium-free, with UV filter.
- COLOR LAYEREPOXY RESINS IN BLACK, GREEN, RED, BLUE, YELLOW, ORANGE depending on the type of sign.
- SELF-ADHESIVE VINYL0.08 mm made of white PVC resin. ADHESIVE back side.
SEMI-RIGID PVC SUPPORT - GLASSPACK
Compressed PVC support with a glossy finish, of high optical quality, especially suitable for printing using screen printing techniques with offset UV curing inks.
TECHNICAL DATA |
||
PROPERTIESYES |
TESTING METHOD |
TYPICAL VALUE |
Tolerance of the thickness |
|
> 300£ 400 µm ± 5% |
Density |
ASTM D-792 DIN 53479 |
1.33 ± 0.01 g/cm3 |
Spot of softening VICAT (1kg / in oil / as samples stacked) |
ISO 306-A50 |
83± 2 °C |
Spot of softening VICAT (5kg / in oil / as samples stacked) |
ISO 306-A50 |
74 ± 2°C |
Strain to the traction |
ISO 527 -1/-2 |
45± 3N/mm2 |
Deformation to the traction |
ISO 527 -1/-2 |
5± 1% |
Spot of creep |
ISO 527 -1/-2 |
36 ± 3 N/mm2 |
Spot of breakage |
ISO 527 -1/-2 |
> 80 % |
Proof of impact |
ISO 8256 |
> 500 kJ/m2 |
Deformation to the impact |
ISO 8256 |
11 ± 2 mm |
Absorption of water |
ASTM D-570 DIN 53495 |
0.004 ± 0.002 % |
SELF-ADHESIVE MONOMERIC VINYL SUPPORT
Molted Printable Digital Vinyl Lamina Monomeric Calant (80µ) Self -adhesive shine color.
Removable water-based acrylic adhesive, which allows the application to be fixed and removed under very light pressure with the fingers, to later be lifted and repositioned if necessary (a characteristic is lost when excessive pressure is exerted).
TECHNICAL DATA |
||
PROPERTIES |
TESTING METHOD |
TYPICAL VALUE |
Material |
|
Vinyl calendered monomeric |
Finish |
|
White glow |
Thickness |
Micrometer Federal Bench |
80 µm |
Guy adhesive |
|
Acrylic base water |
Adherence |
Peelability FTM 1 (180º) |
5 N/25 mm 24 h 23°C/50%RH |
Method of application |
|
Dry |
Elongation |
FTM 14 |
The 0.5 mm |
Range of temperature of application |
|
-50°C to +90°C |
Guy of substrates |
|
Aluminum, Glass, PMMA, PC, ABS, Paint |
Color layer inks
Color layer (according to the needs of the sign) using screen printing inks cured by means of UV radiation for multipurpose use on various plastics.
These are inks with a glossy finish, whose mixture of compounds and radiated curing method give them excellent elasticity and reactivity, not only in overprinting but also in folding and die-cutting.
Mixture of oligomers, monomers, photoiniciators and pigments.
The ink contains the following dangerous elements:
• Hexamethylene diacrylate
• Isobornyl acrylate
• Oxybis(methyl-2,1-ethanediyl) diacrylate
• 1-vinylhexahydro-2H-azepin-2-one
DIMENSIONS (MM)
PVC GLASSPACK 0.7 mm
210x300mm
300x400mm
VINYL STICKERS
150x200mm
100x150mm
200X300mm
ALUMINUM 0.5 mm
210x300mm
300x400mm
APPLICATIONS
The mandatory sign "It is mandatory to remove tips" is frequently installed in places such as:
- Factories
- Workshops
- Production plants
- Electrical rooms
- General industry
INSTALLATION / LOCATION / SIGN PLACEMENT
Check out our blog to learn how to install a sign or poster: https://www.sekureco.eu/blog/76_consejos-de-instalacion-de-senales-de-seguridad.html
To correctly post a mandatory sign indicating that gloves are required, it is important to ensure that it is clearly visible to people entering the work area. It is recommended to place the sign at eye level and in a place where it cannot be obstructed by other objects or signs.
TheFIXATIONThe signaling element must be carried out on a firm and free surface.
The signal may be ensured byMECHANICAL ELEMENTS(Tornillery, rivets, etc ...) orADHESIVES(Assembly adhesive, queues, silicones ...) carefully, avoiding dirty view or deformation of it.
MAINTENANCE AND RECOMMENDATIONS
With the objective of conserving the functionality for which signaling systems have been conceived, Sekureco recommends maintaining signals free of dust, dirt or any rest or object that avoids visibility and identification of them.
For cleaning it is advisable to use soap solutions preferably, avoiding the use of solvents or abrasive products that can deteriorate the surface of the signal.
The working temperature should not be higher than 45º C. Higher temperatures can deform the support material.
NORMATIVE
EN ISO 7010:2012 - European Standard to standardize pictograms, symbols and arrows for obligation, prohibition and danger signs.
WARRANTY
SEKURECO offers on this product the 2-year legal guarantee included in Law 23/2003, of July 10, on Guarantees in the Sale of Consumer Goods.
ABOUT SEKURECO
Experts in workplace safety! We are a young company that emerged in 2016 thanks to the passion of several technicians specialized in prevention and occupational safety and due to the lack of a company specialized in the sector. It offers more than 10 thousand products specialized in labor protection, available to companies and individuals, from the best brands and at the most competitive prices on the market.
