Signal Attention! Risk of Entrapment, with SEKURECO UV inks

Industrial sign indicating the message Attention! Risk of Entrapment, with UV inks, manufactured with UV Inks, which allows you to minimize the risk of your operators when handling machinery.

The poster is available in three different materials and in different sizes. This type of warning must be installed in industries when there is a risk of entrapment of machinery, such as in factories, workshops, and other industrial centers that use heavy machinery

CHARACTERISTICS

• Made of materials:

1. PVC glasspack 0.7mm
2. Vinyl Adhesive (Sticker)
3. 0.5mm aluminum

• Flexible or adhesive laminated polyester hazard signs.
• Easy to install.
• Available in different sizes to suit all your needs.
• Not photoluminescent.
• EN-ISO 7010 standard.
• UV drying inks with great adhesion and resistance. Allows great flexibility in the final product
• Not self-flaming. Not toxic.
• Self-extinguishing.

MEASURES

The signage plates are made as defined in Annex III of RD485/1997, both in their intrinsic characteristics and in the type of sign.

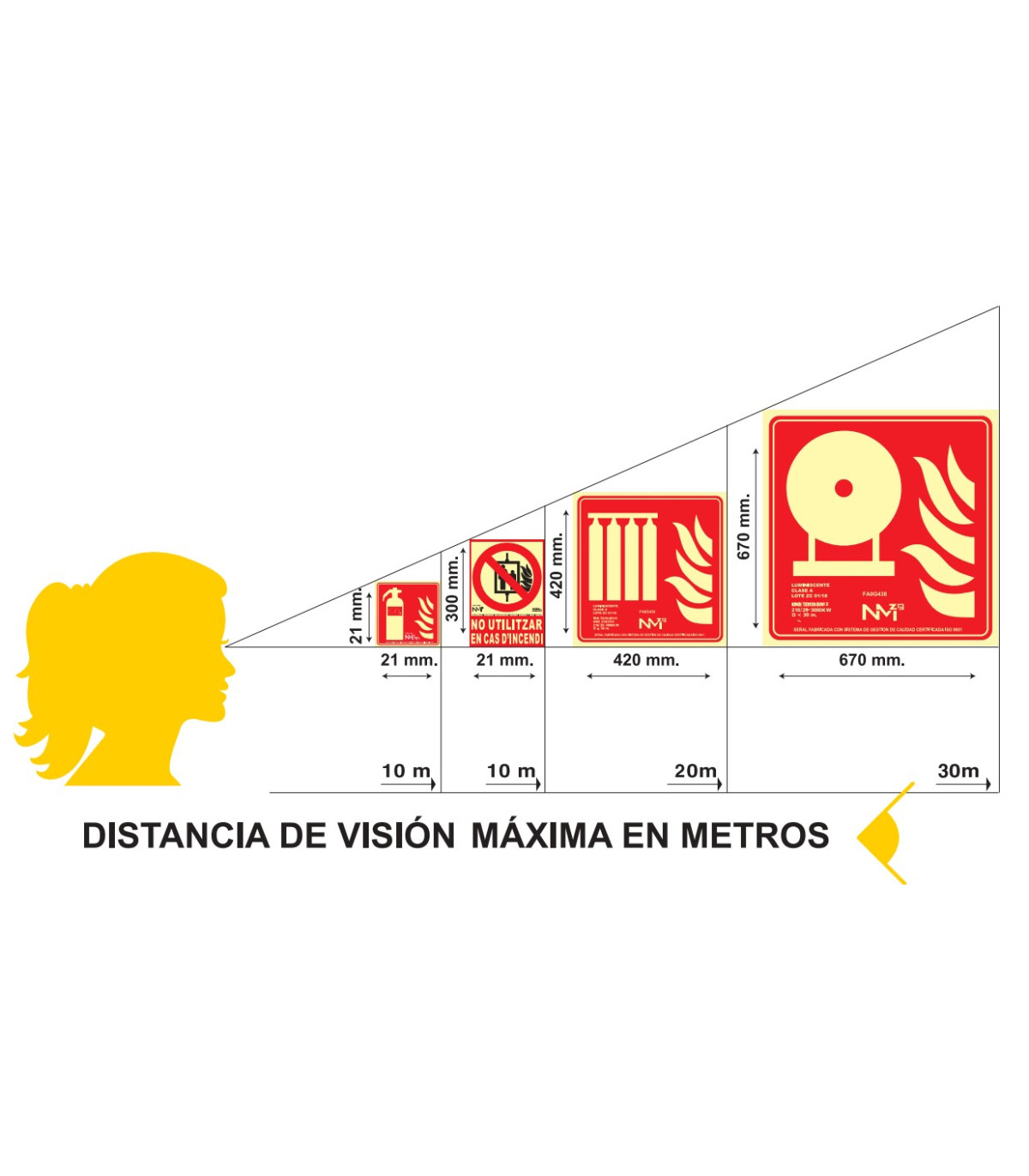

The size of the square makes it visible from 9.30 meters away in its A4 size and 13.4 meters away in its A3 size (according to the formula published in the TECHNICAL GUIDE supporting RD 485/1997).

PVC GLASSPACK 0.7 mm

• RD31010..............300X400 mm *
• RD30010..............210X300 mm

VINYL STICKERS

• RD30610..............200X300 mm
• RD35610..............150X200 mm
• RD36610..............100X150 mm

ALUMINUM 0.5 mm

• RD31910..............300X400 mm *
• RD30910..............210X300 mm *

*This measurement is served with perforated corners

ADHESIVE PVC SIGN (STICKER)

Signs are manufactured on a sheet of self-adhesive gloss white monomeric calendered vinyl

The color coating is applied to it using silk-screen techniques.

The adhesive is protected against the elements by a transparent gloss calendered laminate.

Our products areNON-TOXIC, NON-RADIOACTIVE, NON-COMBUSTIBLE and RESISTANT TO AGING.

Description:

• TRANSPARENT LAMINATE GLOSSY FINISH0.8 mm. Transparent CALANDRED PVC film with MONOMERIC PLASTICIZER, cadmium-free, with UV filter.
• COLOR LAYEREPOXY RESINS IN BLACK, GREEN, RED, BLUE, YELLOW, ORANGE depending on the type of sign.
• SELF-ADHESIVE VINYL0.08 mm made of white PVC resin. ADHESIVE back side.

SEMI-RIGID PVC SUPPORT - GLASSPACK

Compressed PVC support with a glossy finish, of high optical quality, especially suitable for printing using screen printing techniques with offset UV curing inks

SELF-ADHESIVE MONOMERIC VINYL SUPPORT

Molted Printable Digital Vinyl Lamina Monomeric Calant (80µ) Self -adhesive shine color.

Removable water-based acrylic adhesive, which allows the application to be fixed and removed under very light pressure with the fingers, to later be lifted and repositioned if necessary (a characteristic is lost when excessive pressure is exerted).

NORMATIVE

• UNE EN-ISO 7010 - Colors and safety signs.
• UNE 53127:2002 - Determination of combustion characteristics.
• RD 485/1997 - On safety signage.
• RD 486/1997 - On safety in workplaces.
• CTE - Building Technical Code.
• RSCIEI - Fire safety regulations in industrial buildings.
• Law 31/1995 - On prevention of occupational risks.
• SEKURECO SIGNS ARE MANUFACTURED WITH A UNE-EN ISO 9001 CERTIFIED QUALITY MANAGEMENT SYSTEM

STORAGE, CLEANING AND CONSERVATION

The working temperature should not be higher than 45º C. Higher temperatures can deform the support material.

The optimal storage temperature will be between 15º C and 25º C; and with a humidity of 10/50%.
