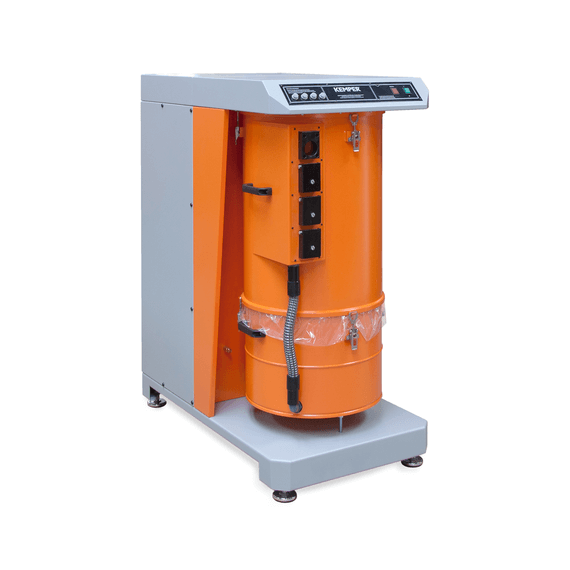

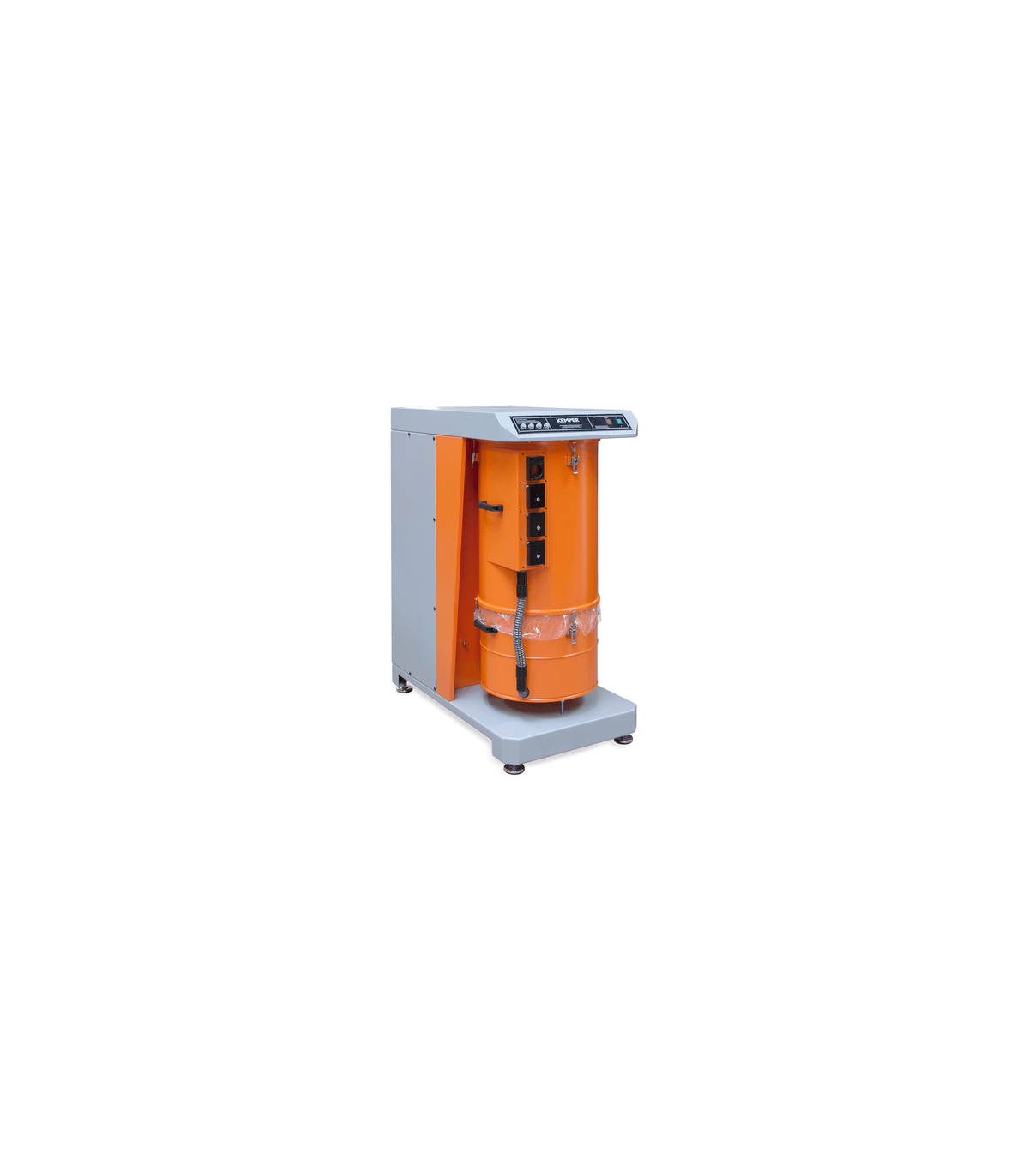

High vacuum suction device for a maximum of up to 4 82700

The VacuFil 500 high vacuum aspiration and filtration unit is well suited for large amounts of smoke and dust, thanks to the automatic cleaning of the filter for continuous use. A bypass channel compressor to generate vacuum pressure provides robust productivity for industrial users. Apart from up to four individual stations depending on the version the connection in a central piping system is also possible.

Summary and applications

• Large amounts of smoke/dust
• Continuous use
• Machinery for making pulp of fibrous cellulosic material
• In suction nozzles and high vacuum suction arms

Benefit

• High profitability thanks to automatic filter cleaning
• Maximum health protection for operators through the use of KemTex® ePTFE filter cartridges with surface filtering
• Great flexibility in the version with four separate connection sockets
• Continuous uninterrupted operation thanks to automatic filter cleaning

Characteristics

• Automatic cleaning by differential pressure
• Dust collector
• Control of filters
• Machinery for making pulp of fibrous cellulosic material
• ChemTex® filter cartridges made of ePTFE
• 4 suction connections for pipes of diameter 45 or 1 suction connection of diameter 100

Additional equipment

• Automatically start/stop system
• Other, of circular cross-section
• Slotted and tapered nozzle
• Machinery for making pulp of fibrous cellulosic material

Variants

• Other available supply voltages
